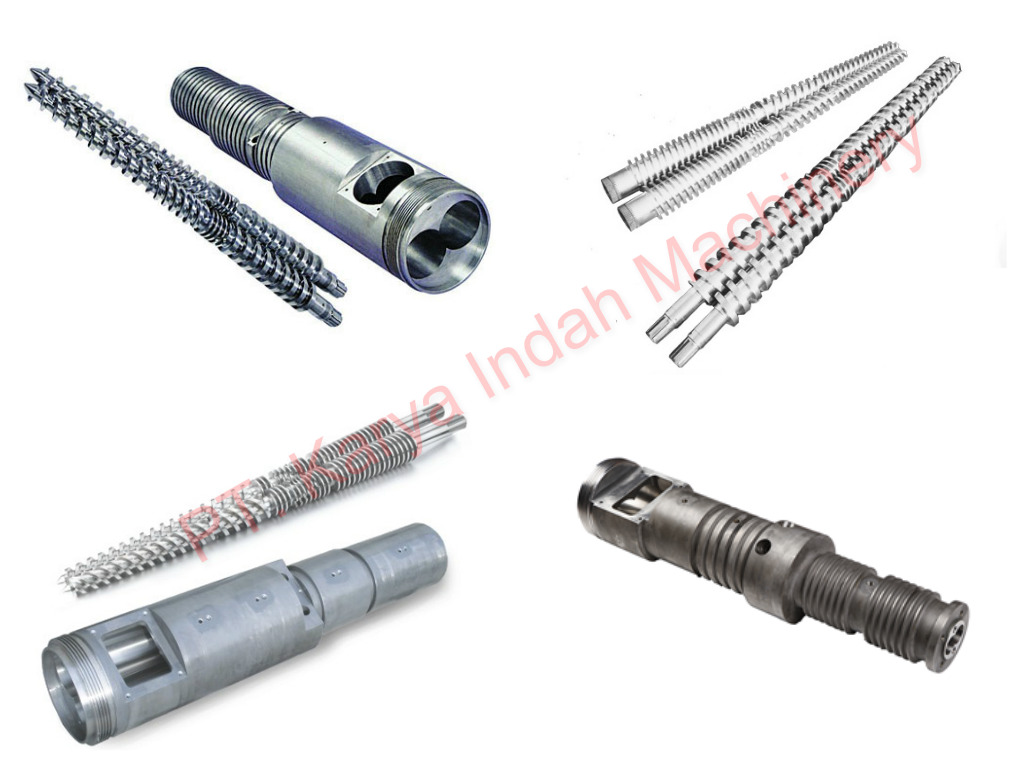

    • Conical Twin Screw dan Barrel

    Parameter Teknis :
    Tempering Hardness : HB240-280
    Nitrided Hardness : HV850-1000°
    Nitrided Depth : 0.45-0.7mm
    Nitrided Brittleness : Lebih kecil atau sama dengan 2 tingkat
    Surface Roughness : Ra 0.4
    Screw Straightness : 0.015mm
    Chromium-plating Surface Hardness after Nitriding : Lebih besar atau sama dengan 900HV
    Chromium-plating Depth : 0.05-0.10mm
    Dual Alloy Hardness : HRC55-60°
    Dual Alloy Depth : 2.0-3.0mm

    Jenis Screw :
    Untuk memenuhi kebutuhan pelanggan, kami menyediakan banyak desain seperti Wave Type, Barrier Type, Mutant Type, Gradual-Change Type, Shunt Type, Exhausted type, dan Separated Type, Mixed Type, Pin Type, Double Scree Type, dan Multi Head Type
    Material dan Teknologi :
    Material : 38 CrMoALA(JIS SACM645), 42 CrMo(JIS SCM440), 9 Cr18MoV, CW6M05Cr4V2, and 9Cr18MoV
    Logam Campuran Berkualitas Tinggi (Iron, Tungsten, Nickel, Molybdenum, Duplex Stainless Steel, dan Powder Metallurgy Material)
    Advanced Nitriding Technology
    Spraying Technology of corrosion and wear resisting thermometal
    Cold and Hot spraying technology of hard metal
